PEAK GRIDS

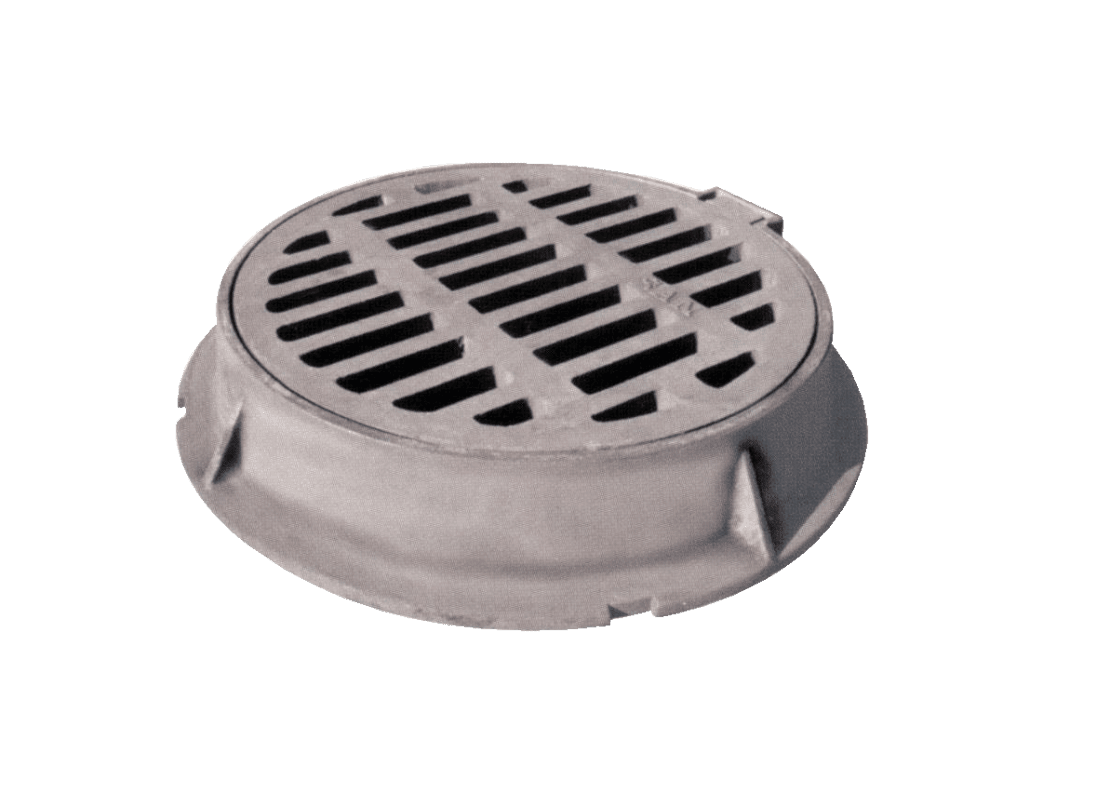

AC 18

AC 18

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	H	KG 3
B328	Orta-Medium	250kN	C250	500	600	50	62

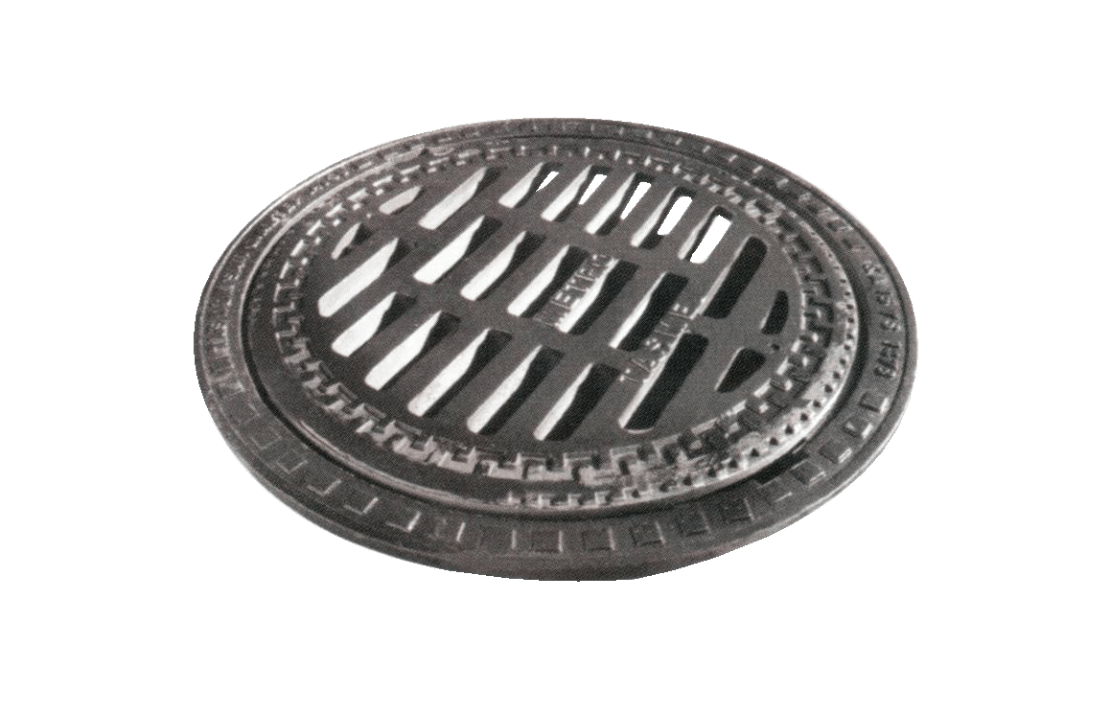

AC 17

AC 17

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	H	KG 3
B327	Orta-Medium	250kN	C250	500	500	50	58

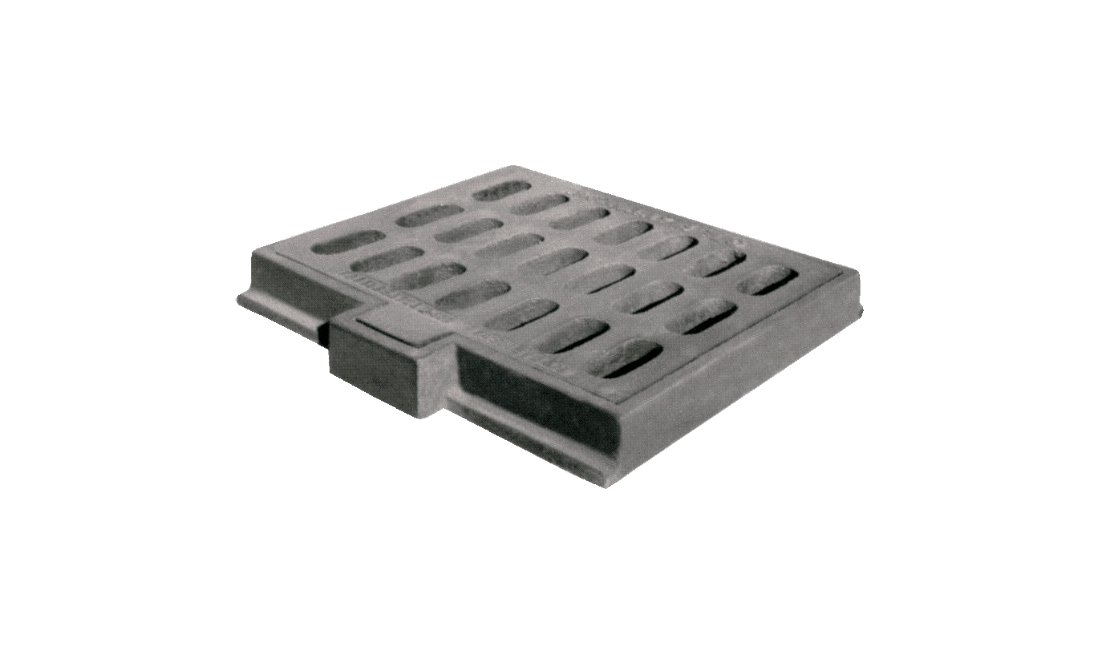

AC 16

AC 16

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	H	KG 3
B326	Orta-Medium	125kN	B125	500	500	45	42

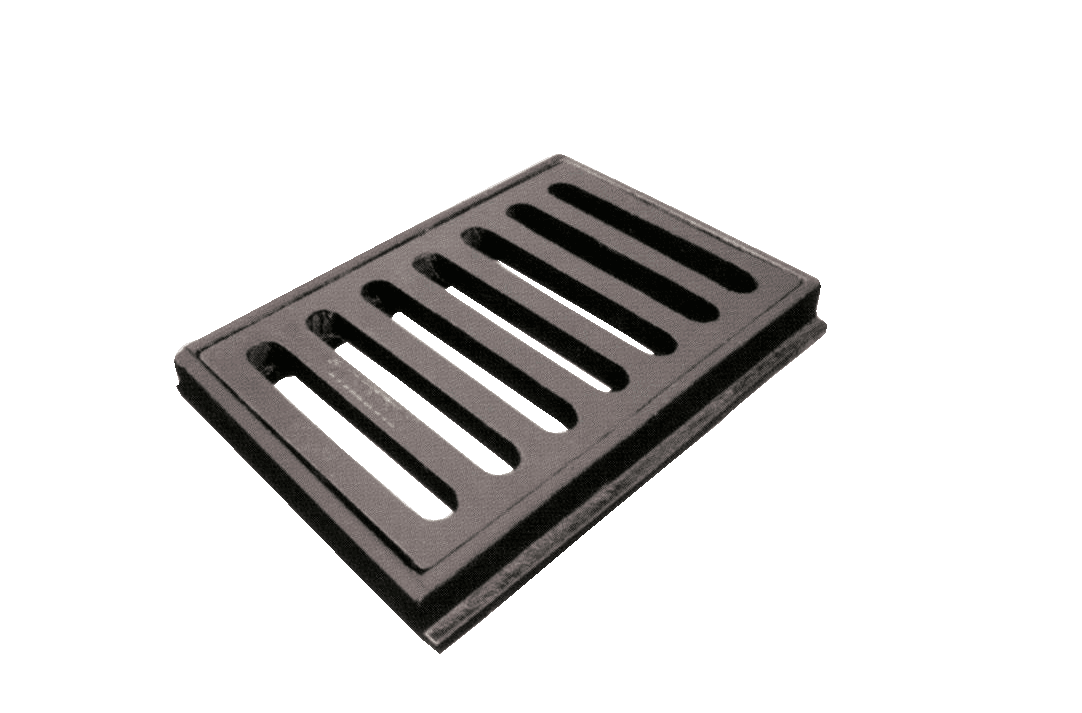

AC 15

AC 15

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	H	KG 3
B324	Hafif-Light	125kN	A15	500	380	45	34

AC 14

AC 14

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	H	KG 3
B326	Orta-Medium	125kN	B125	500	500	45	42

AC 13

AC 13

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B319	Orta-Medium	250kN	C250	375	500	475	590	460-320	45-60	59

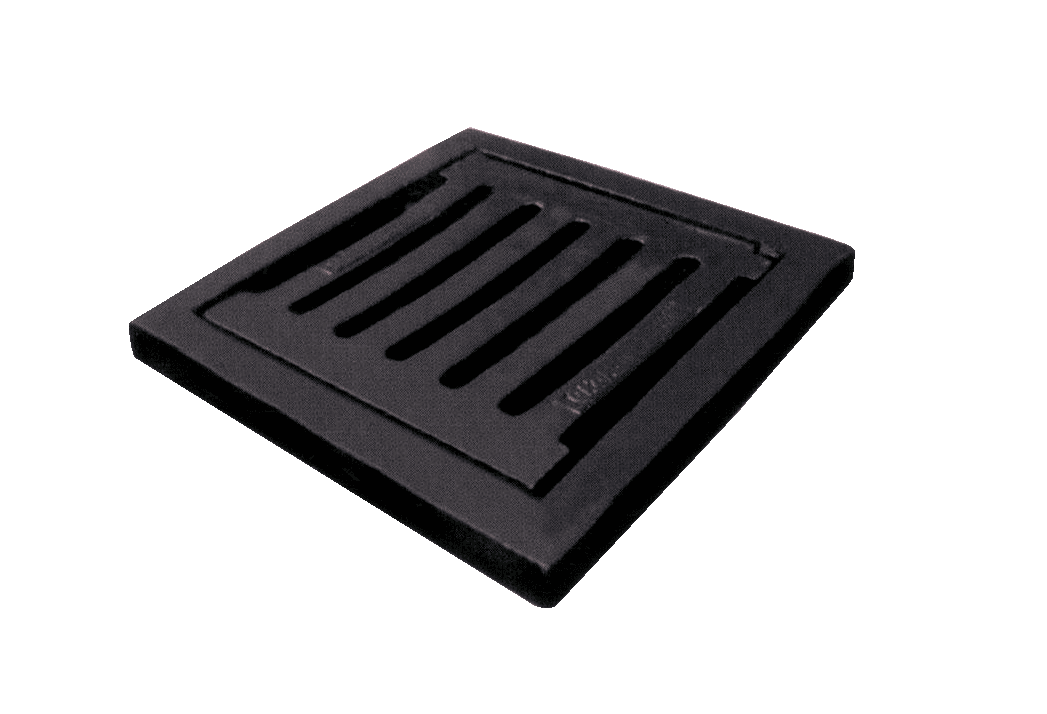

AC 12

AC 12

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B318	Orta-Medium	250kN	C250	300	500	415	590	460-320	45-60	48

AC 11

AC 11

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	E	CANAL	H	KG 3
B316	Ağır-Heavy	400kN	D400	500	730	620	840	670	465	95	135

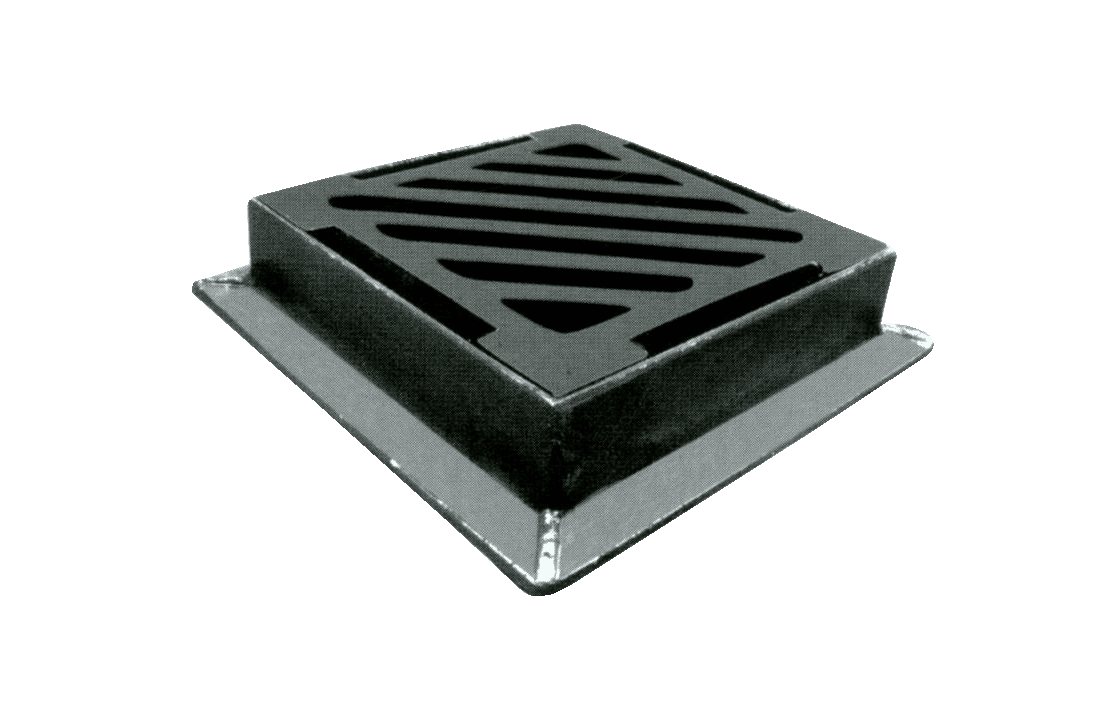

AC 10

AC 10

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	E	CANAL	H	KG 3
B315	Ağır-Heavy	400kN	D400	500	500	610	610	670	470	95	105

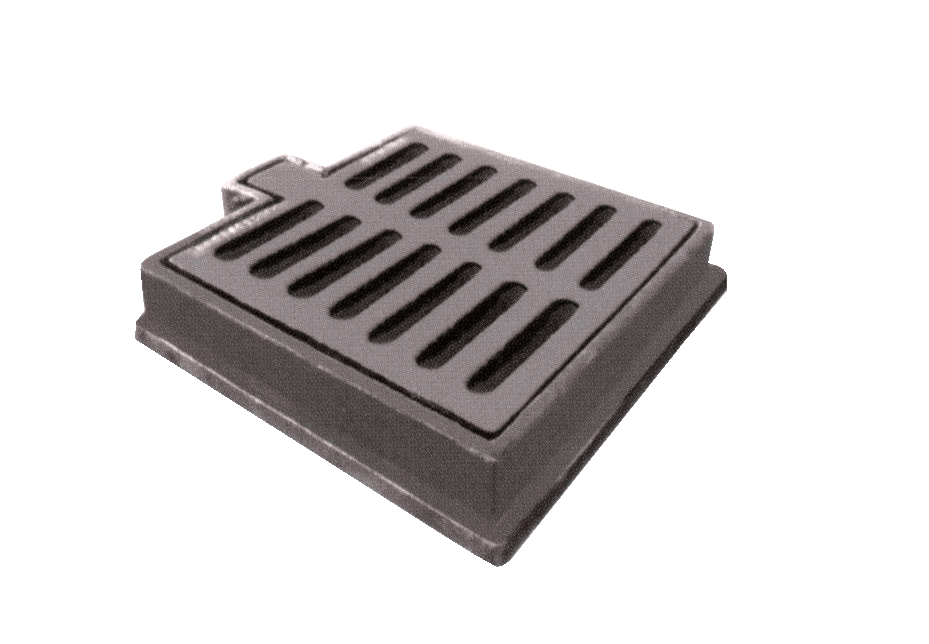

AC 09

AC 09

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B314	Ağır-Heavy	400kN	D400	635	635	790	790	606	68-100	152

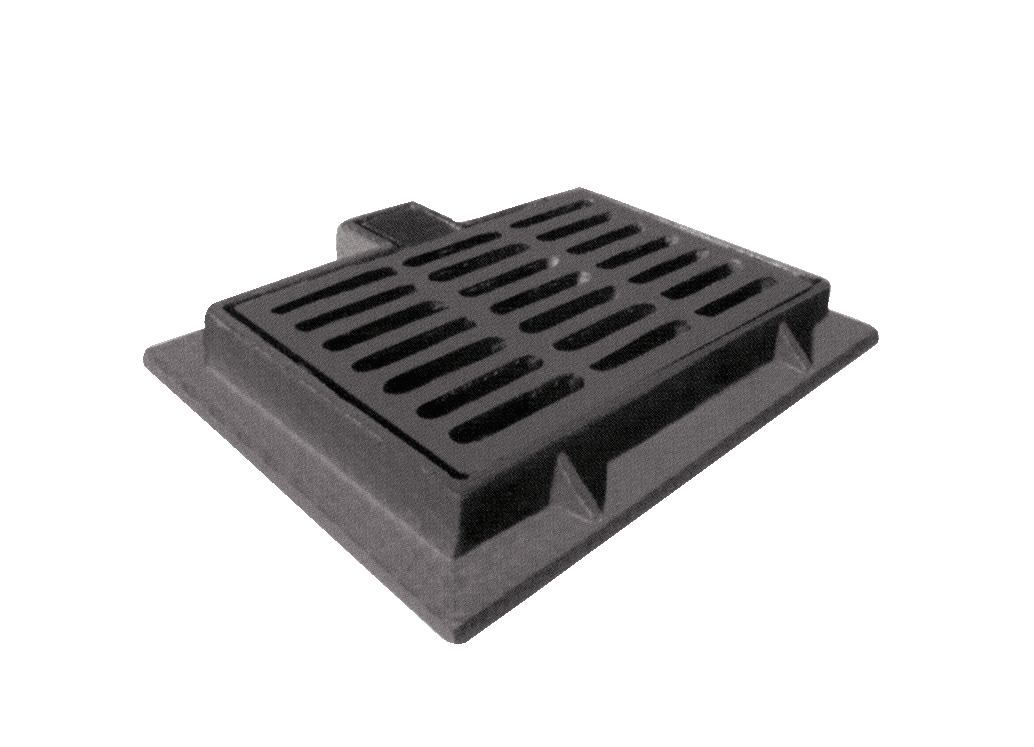

AC 08

AC 08

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B313	Ağır-Heavy	400kN	D400	450	450	560	560	447	125	125

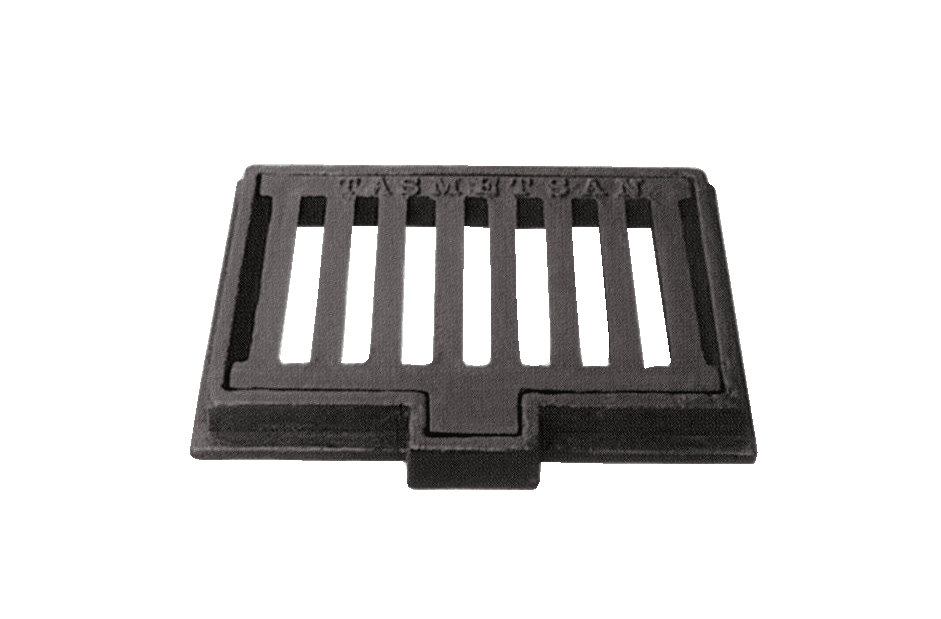

AC 07

AC 07

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B312	Orta-Medium	250kN	C250	450	450	560	560	447	100	72

AC 06

AC 06

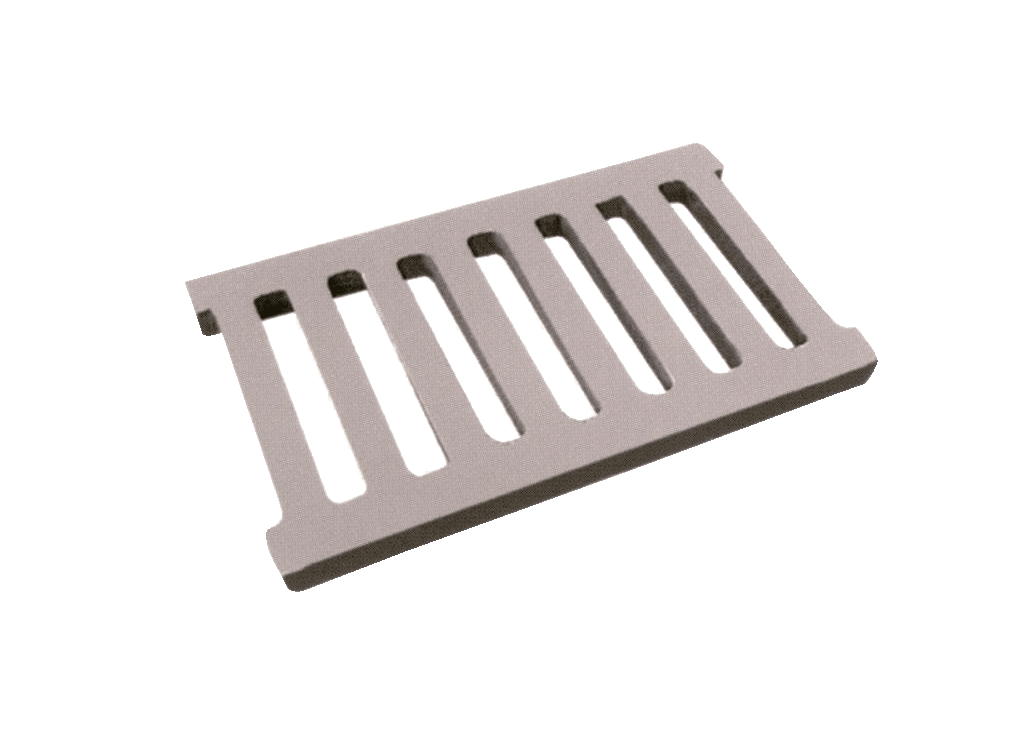

AC 05

AC 05

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B307	Orta-Medium	250kN	C250	600	400	645	470	505	54-73	95

AC 04

AC 04

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B306	Ağır-Heavy	400kN	D400	725	525	675	475	605	70-80	120

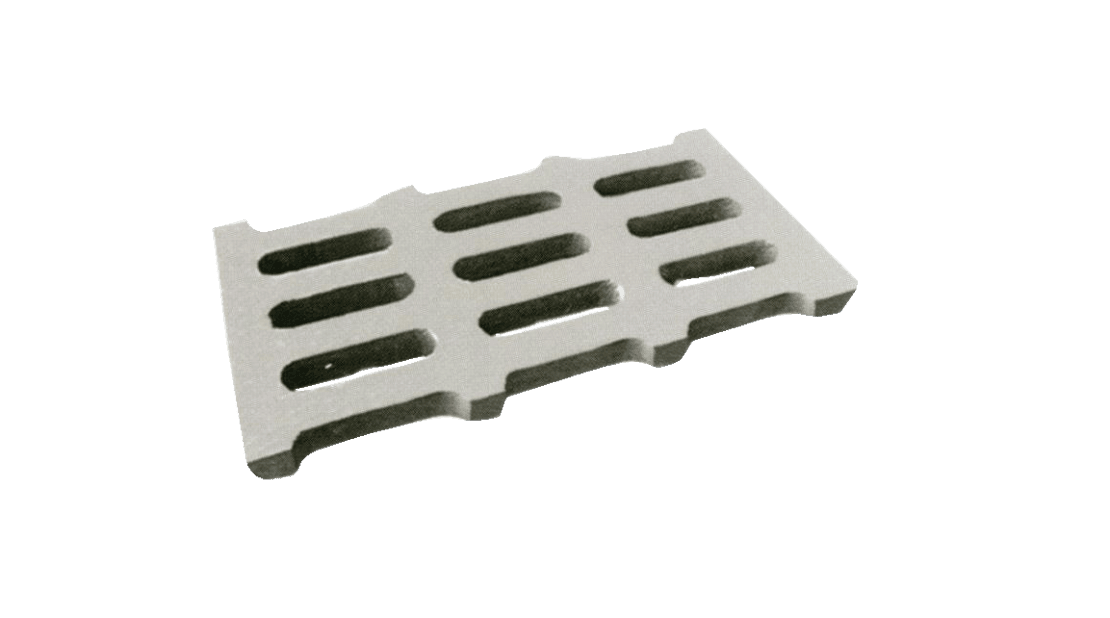

AC 03

AC 03

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B305	Orta-Medium	400kN	C250	450	550	540	600	438	50-70	75

AC 02

AC 02

AC 01

AC 01

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	CANAL	H	KG 3
B301	Ağır-Heavy	400kN	D400	795	655	704	605	84	155
