DUCTILE IRON CASTING COVERS

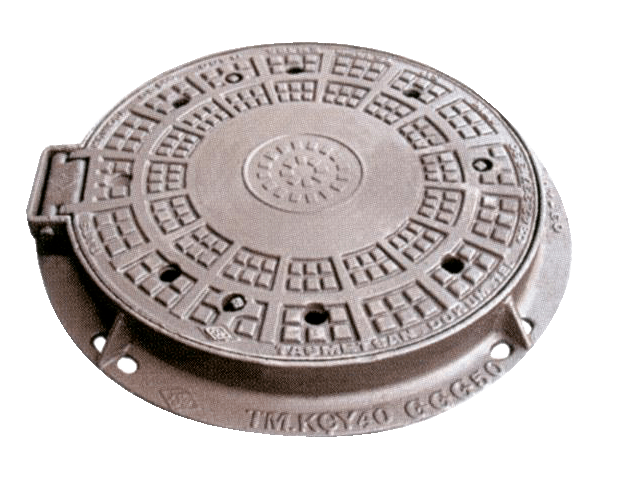

AC 01

AC 01

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	CANAL	H	KG 3
AC01	AĞIR-HEAVY	400kN	D400	670	695	790	610	60-125	88

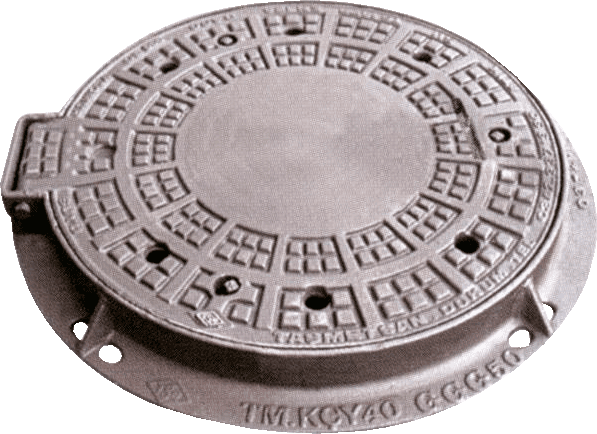

AC 02

AC 02

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	CANAL	H1-H2	KG 3
B002	Ağır-Heavy	400kN	D400	670	695	810	600	60-118	88

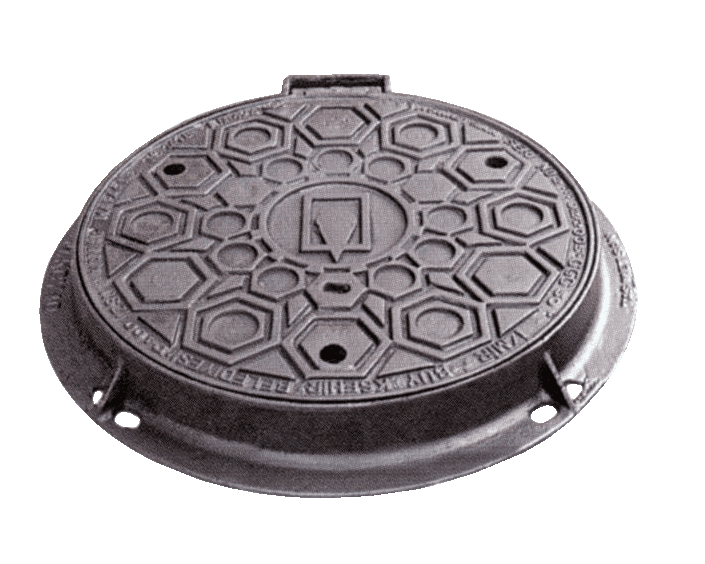

AC 03

AC 03

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	CANAL	H1-H2	KG 3
B003	Ağır-Heavy	400kN	D400	810	670	178	600	75-130	88

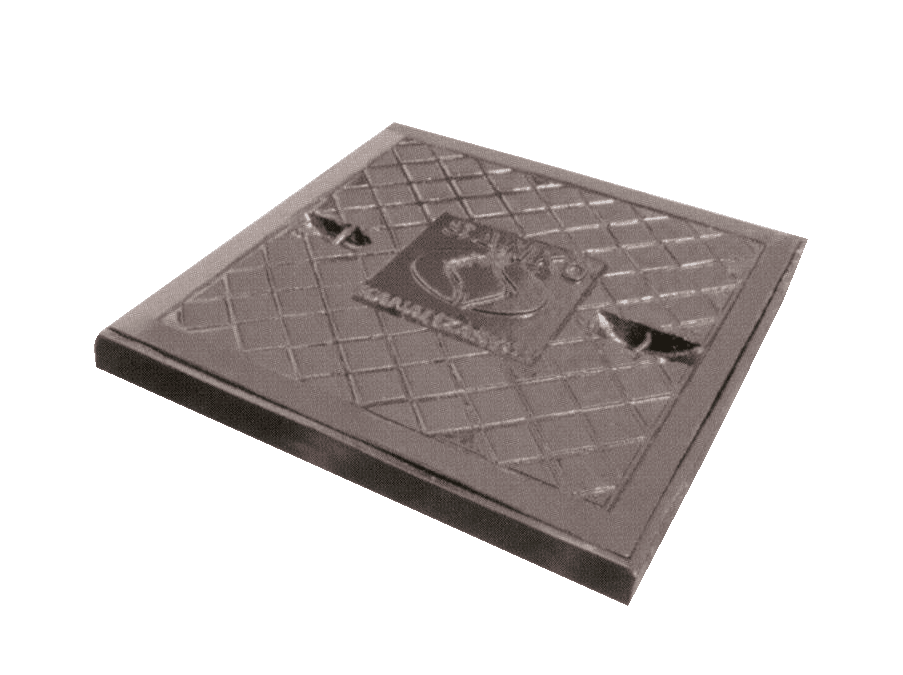

AC 04

AC 04

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B004	Orta-Medium	250kN	C250	675	675	710	710	640	40-50	80

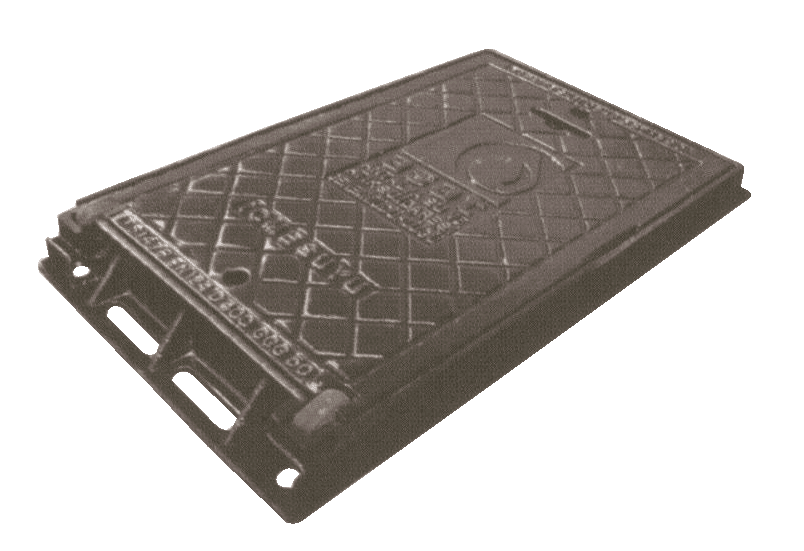

AC 05

AC 05

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B005	Ağır-Heavy	400kN	D400	800	500	962	522	748	80-115	95

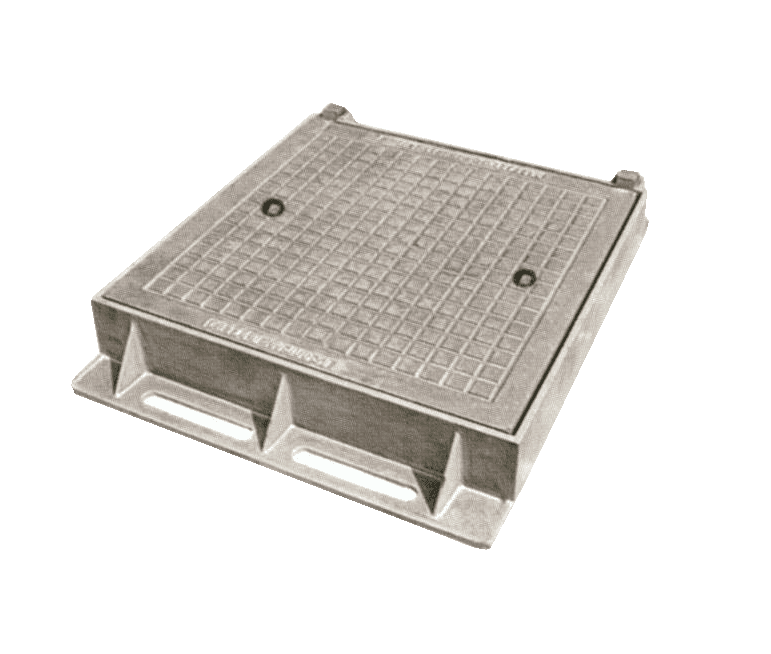

AC 06

AC 06

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B006	Ağır-Heavy	400kN	D400	450	450	600	470	400	100	59
B007	Ağır-Heavy	400kN	D400	600	450	738	466	538	100	73
B008	Ağır-Heavy	400kN	D400	600	600	738	616	538	100	95
B009	Ağır-Heavy	400kN	D400	600	750	738	780	538	100	110

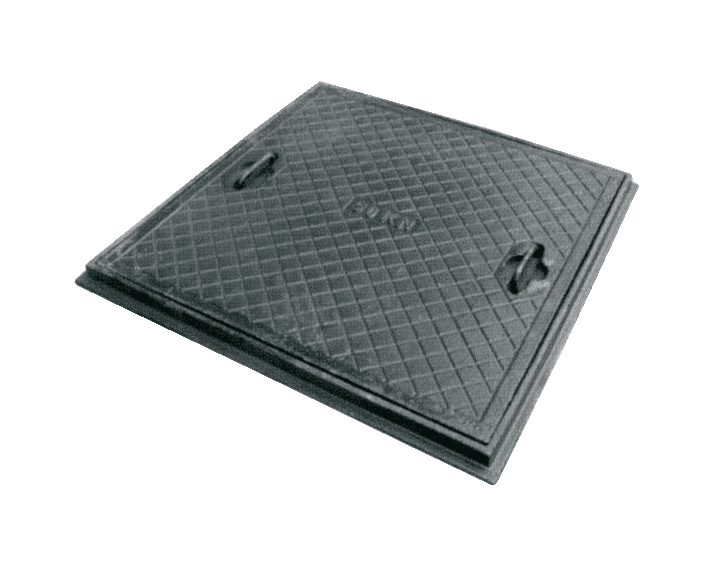

AC 07

AC 07

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B010	Hafif-Light	125kN	B125	610	610	560	560	544	15-50	58

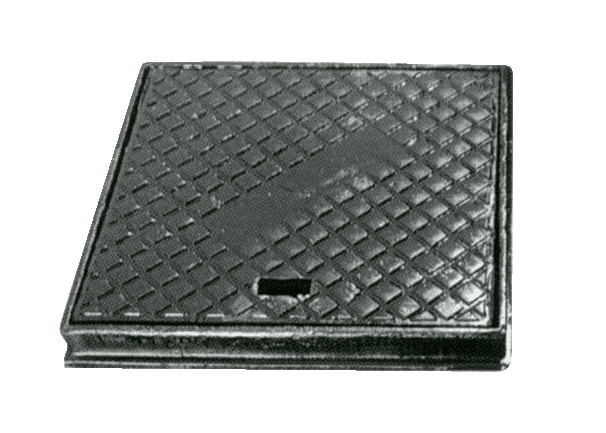

AC 08

AC 08

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B011	Hafif-Light	50kN	B125	590	590	645	645	560	35-70	40

AC 09

AC 09

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B012	Orta-Medium	150kN	A15	590	590	645	645	560	35-100	55

AC 10

AC 10

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B013	Orta-Medium	250kN	C250	590	590	645	645	560	60-135	75

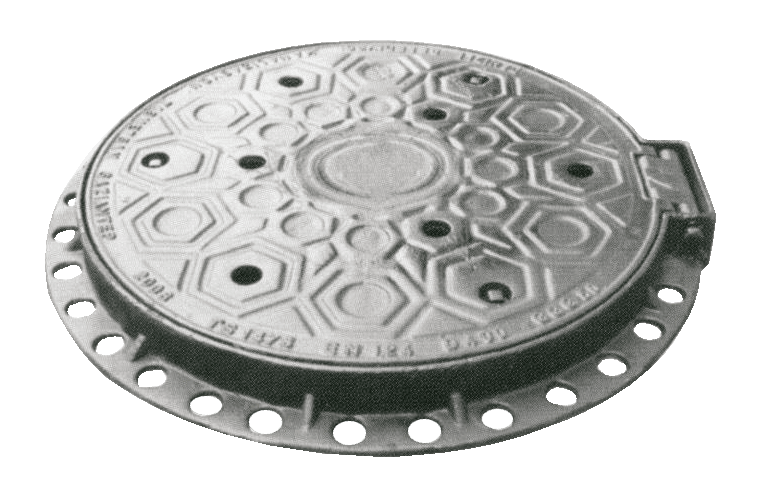

AC 11

AC 11

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	CANAL	H1-H2	KG 3
B014	Orta-Medium	250kN	C250	670	810	600	35-70-105	72

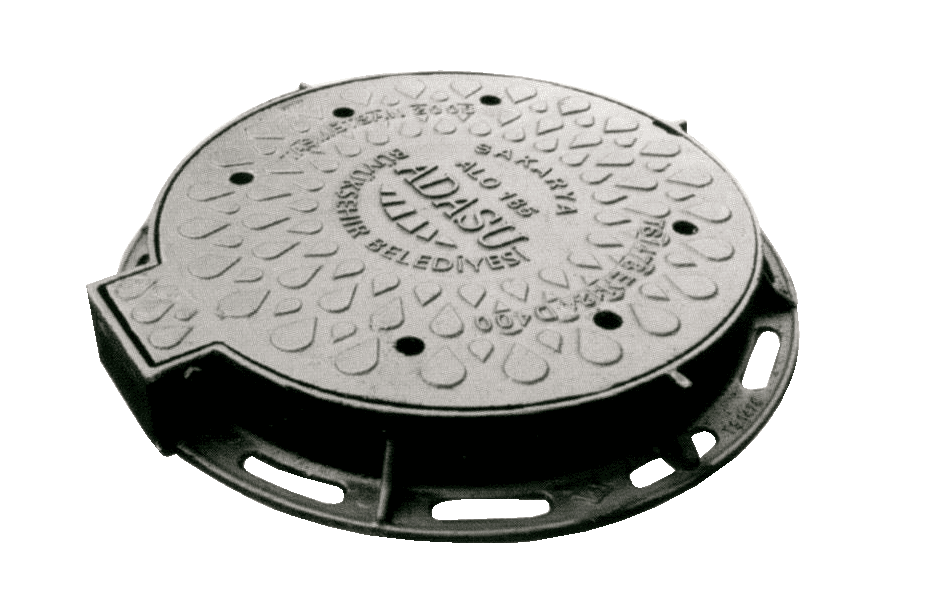

AC 12

AC 12

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	CANAL	H1-H2	KG -3
B015	Ağır-Heavy	400kN	D400	670	700	820	600	30-102	82
