DUCTILE IRON GRATINGS

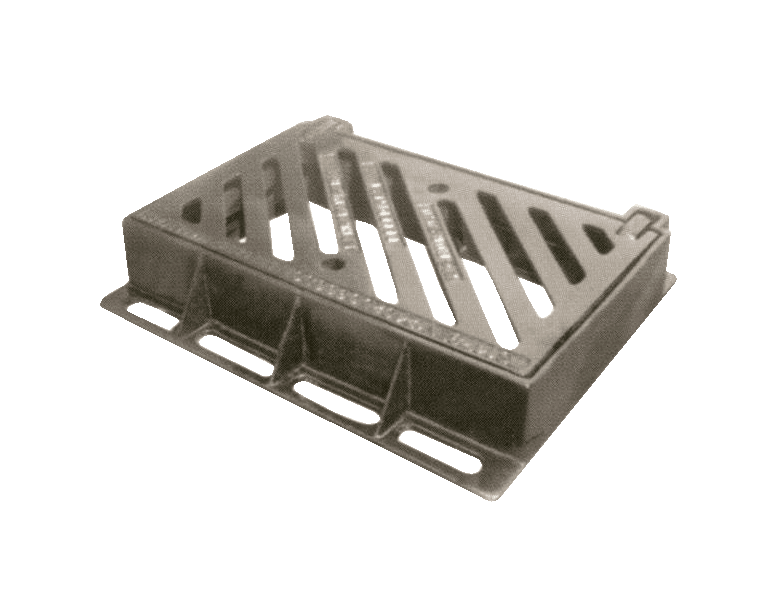

AC 01

AC 01

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B100	Düz-Flat	250kN	C250	500	600	338	578	298	70-110	55

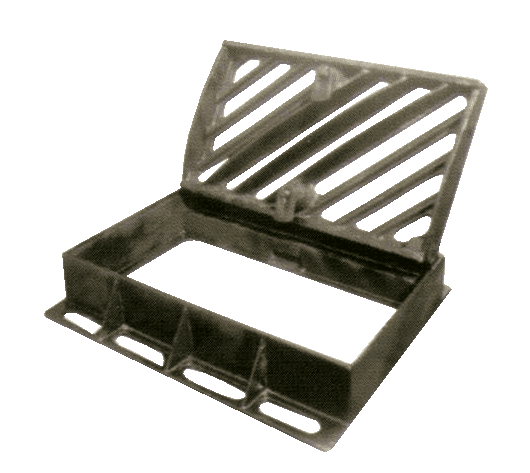

AC 02

AC 02

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B101	Oval	250kN	C250	500	600	338	578	298	70-110	55

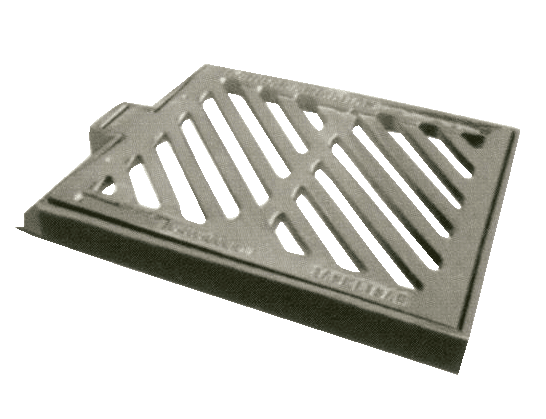

AC 03

AC 03

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B102	Ağır-Heavy	400kN	D400	535	440	698	470	494	59-102	71

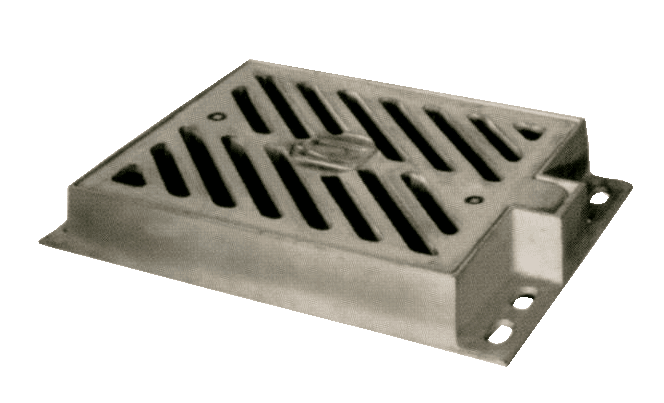

AC 04

AC 04

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B103	Orta-Medium	250kN	C250	545	440	670	480	490	40-60	57

AC 05

AC 05

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B105	Orta-Medium	250kN	C250	405	600	425	640	330	70-85	75

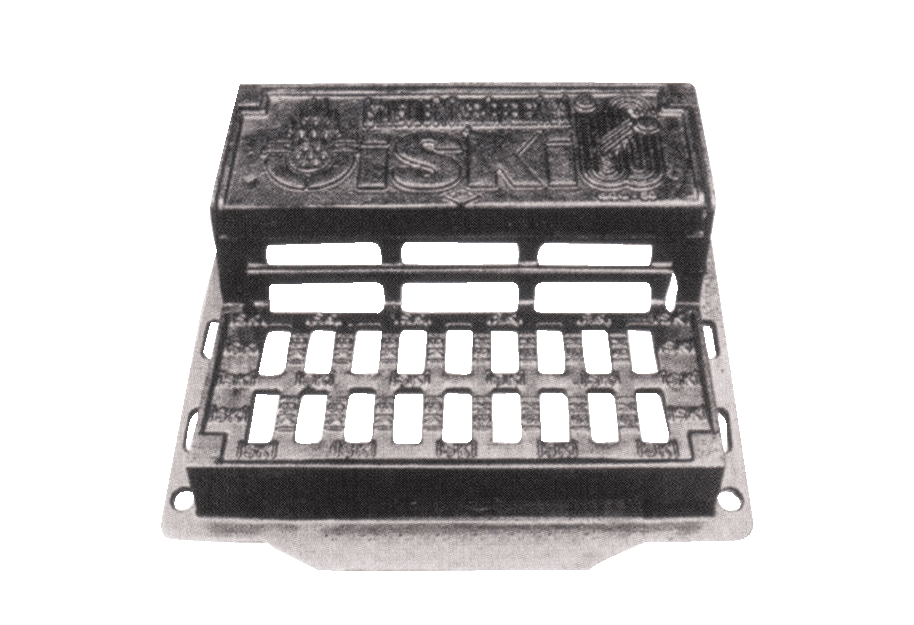

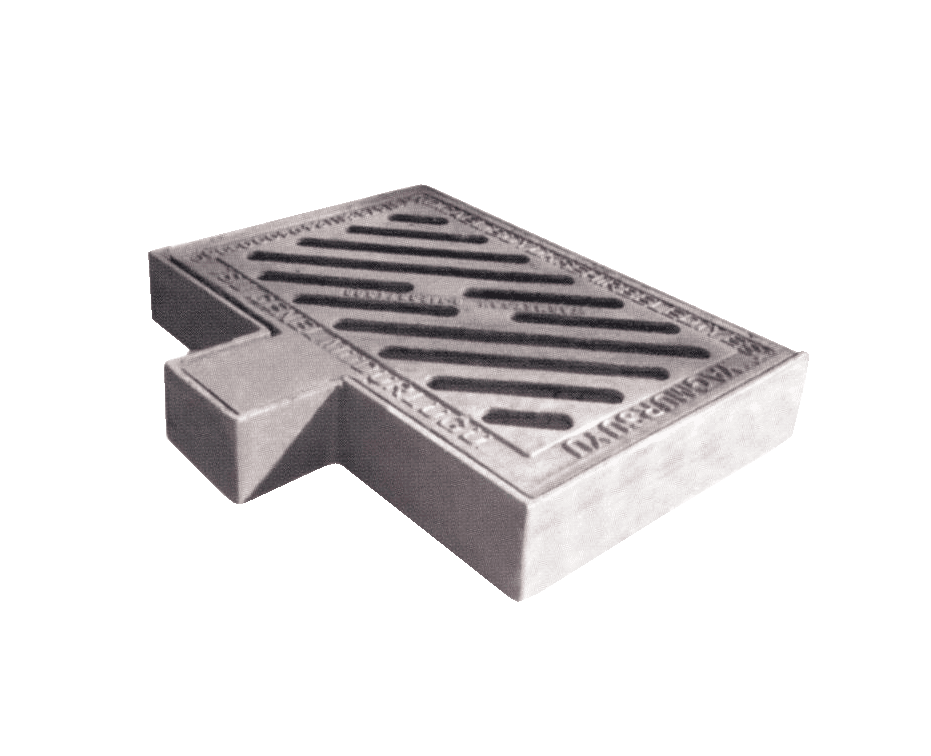

AC 06

AC 06

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B104	Ağır-Heavy	400kN	D400	475	675	495	715	389	70-85	95

AC 07

AC 07

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B106	Oval	250kN	C250	380	574	450	600	260	50-115	55

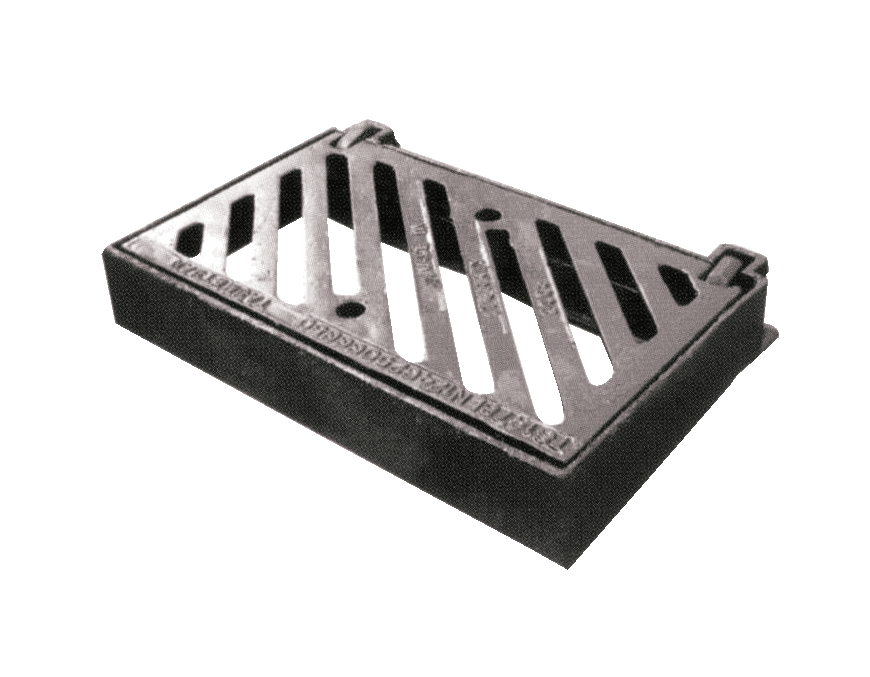

AC 08

AC 08

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B107	Düz-Flat	250kN	C250	380	574	450	600	260	50-115	55

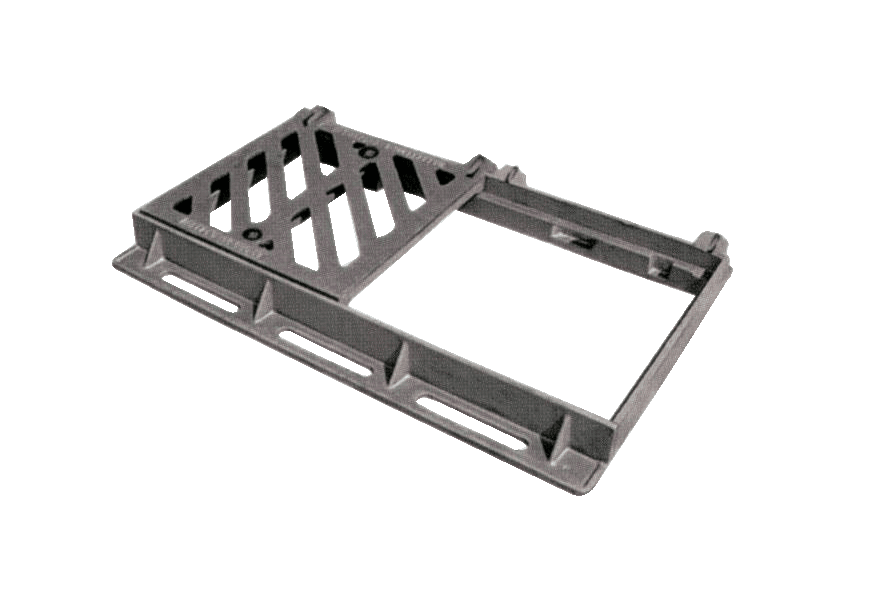

AC 09

AC 09

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B108	Ağır-Heavy	400kN	D400	450	550	595	575	400	48-84	77

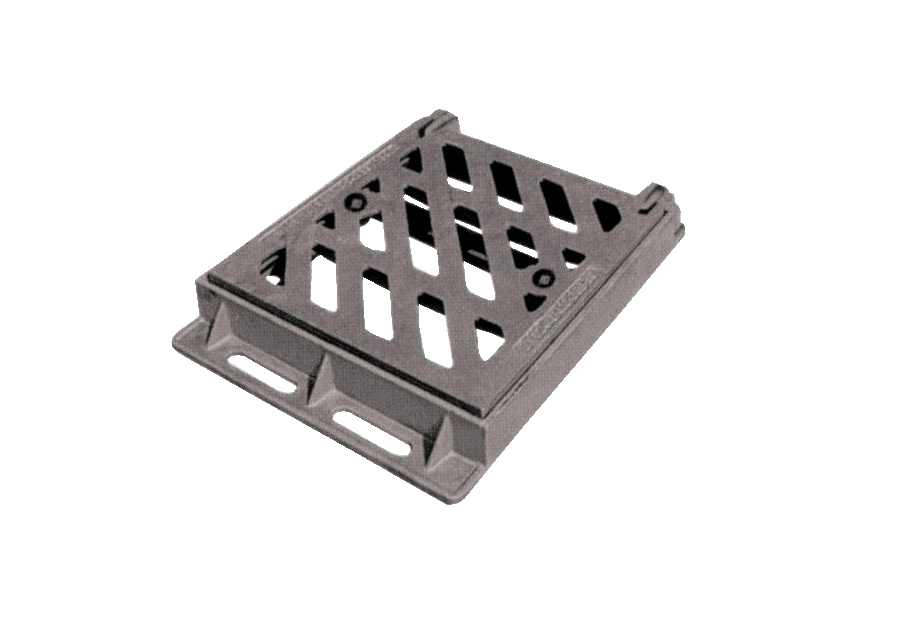

AC 10

AC 10

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	CANAL	H1-H2	KG 3
B109	Ağır-Heavy	400kN	D400	450	950	644	418	90	117

AC 11

AC 11

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B110	Ağır-Heavy	400kN	D400	450	1430	644	1360	418	90	160

AC 12

AC 12

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B111	Ağır-Heavy	400kN	D400	600	1000	430	965	388	60-116	125

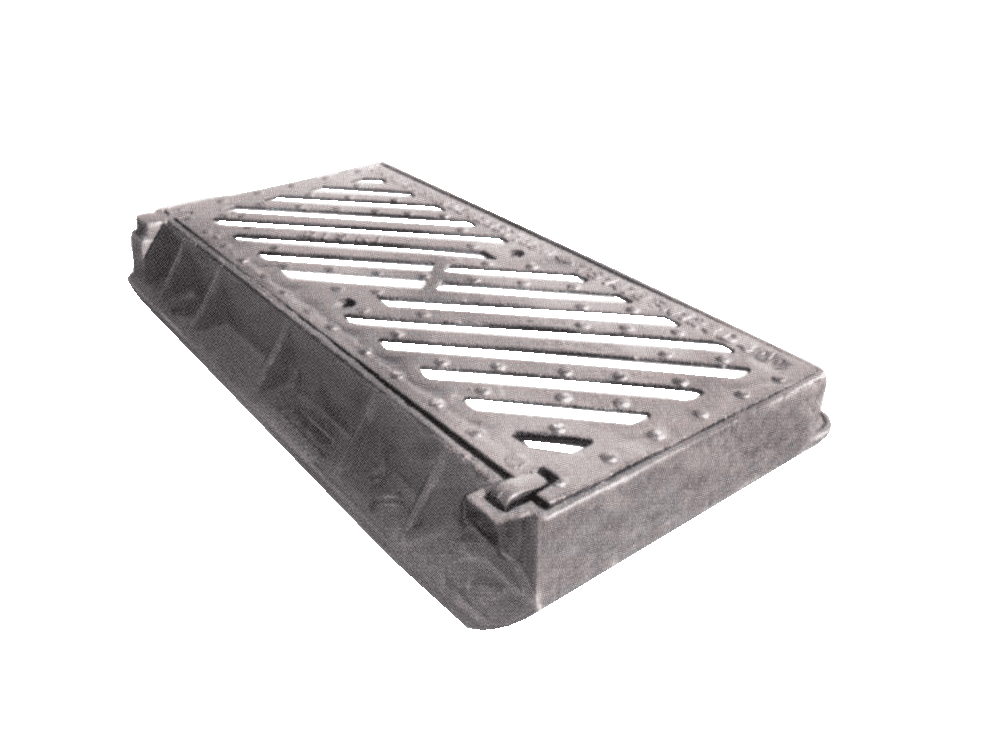

AC 13

AC 13

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B112	Ağır-Heavy	400kN	D400	600	1000	430	970	388	60-116	125

AC 14

AC 14

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B113	Ağır-Heavy	400kN	D400	570	570	600	600	470	115	88

AC 15

AC 15

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B114	Ağır-Heavy	400kN	D400	570	570	694	594	500	115	82

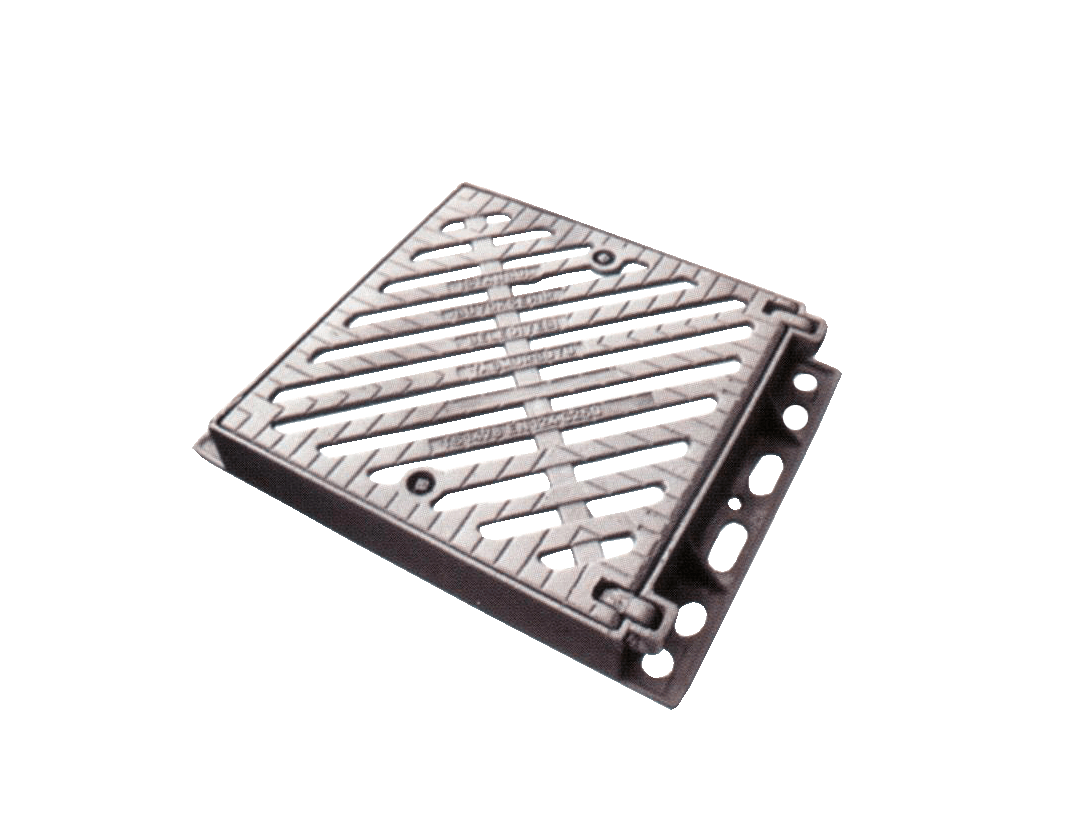

AC 16

AC 16

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H	KG 3
B115	Ağır-Heavy	400kN	D400	800	800	945	825	745	115	115

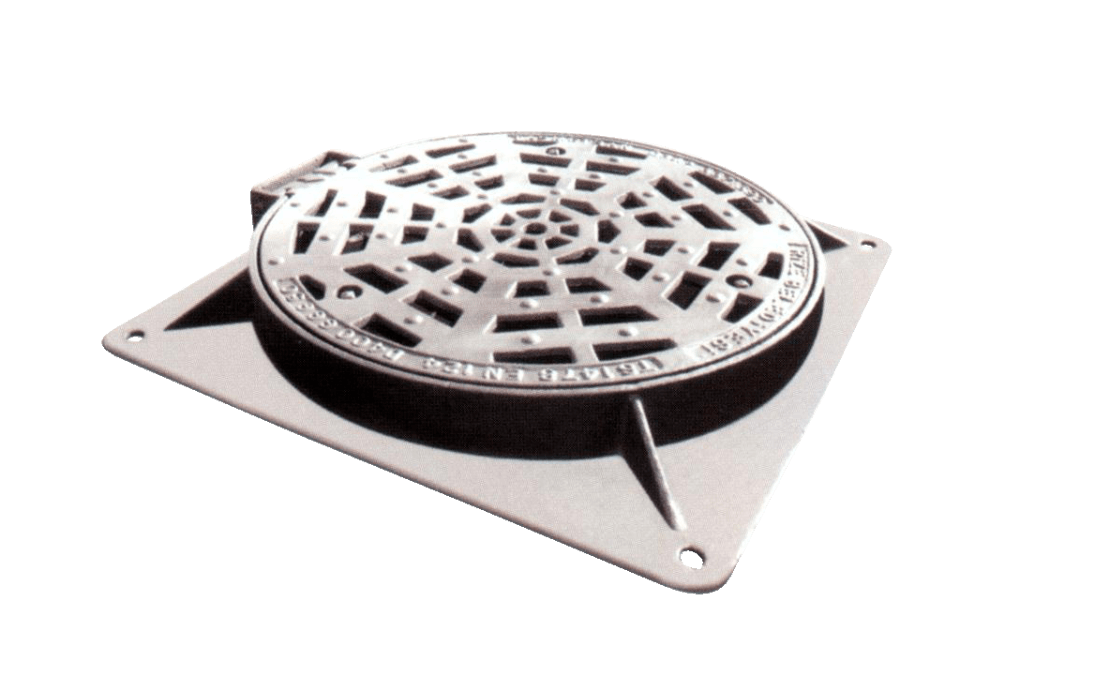

AC 17

AC 17

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	CANAL	H	KG 3
B116	Ağır-Heavy	400kN	D400	775	775	692	605	89	90

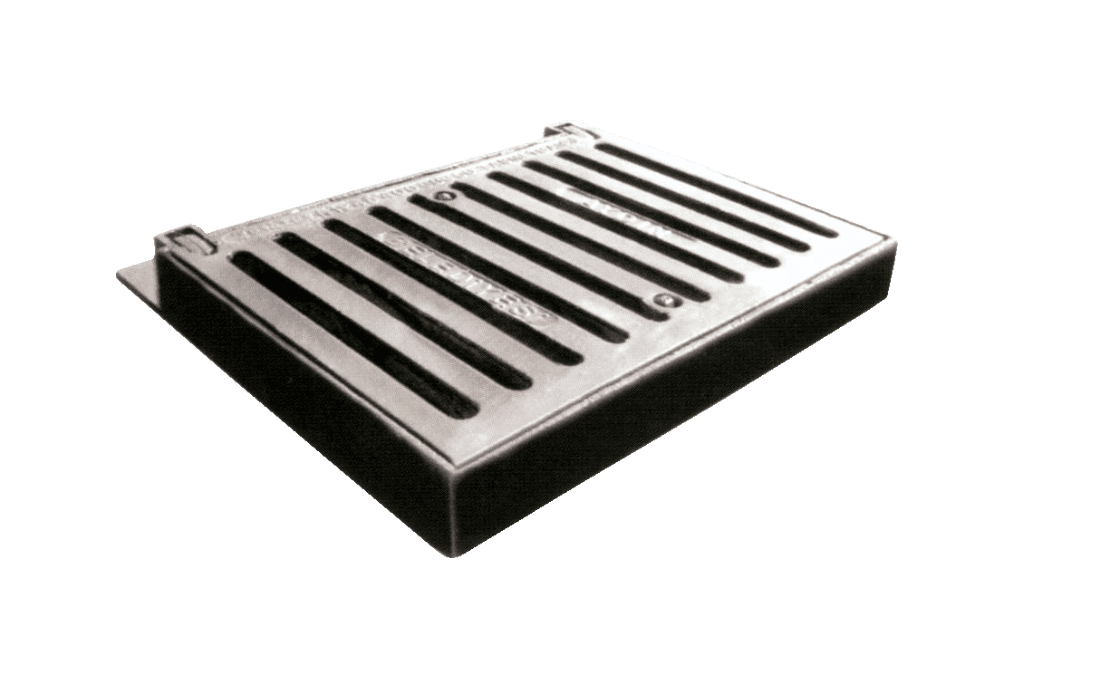

AC 18

AC 18

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C-D	D	E	H	CANAL	KG 3
B117	Ağır-Heavy	400kN	D400	505	710	560	475-680	640	85	400-640	80

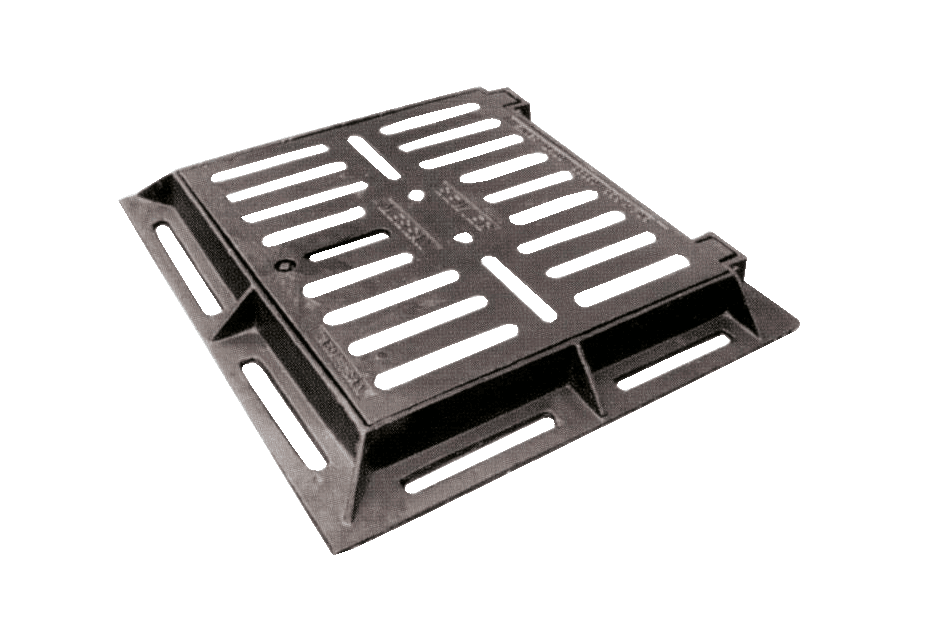

AC 19

AC 19

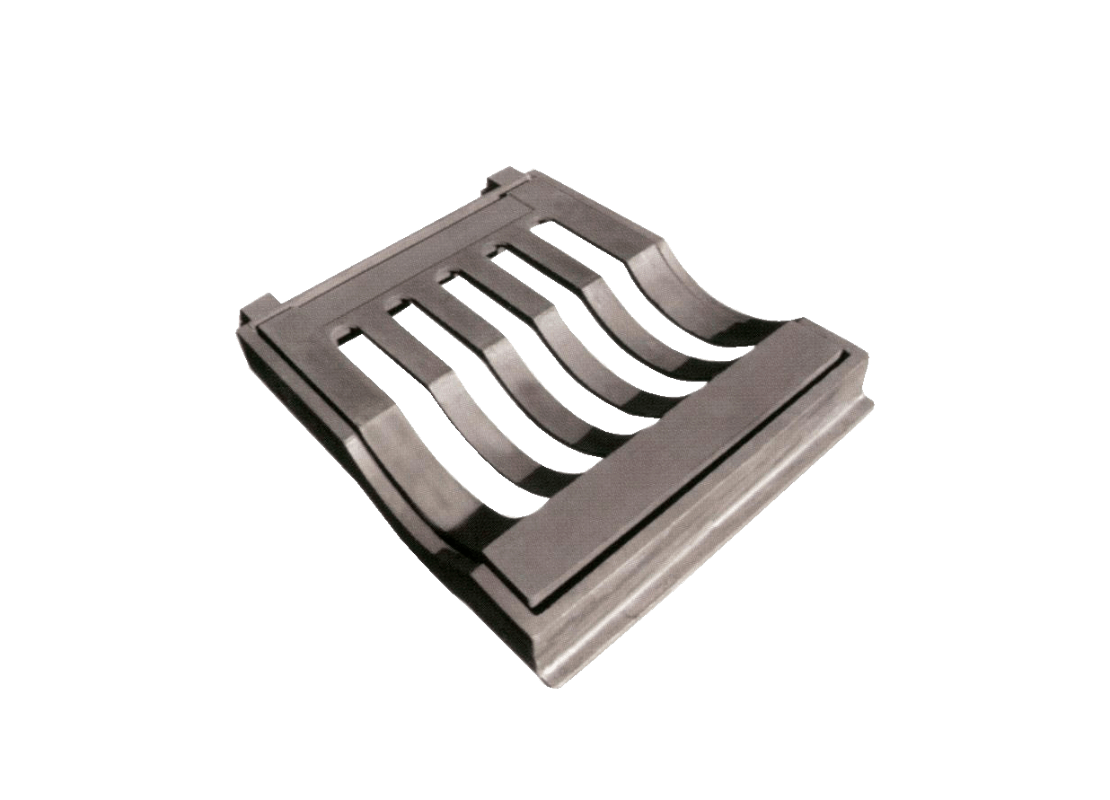

AC 20

AC 20

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	CANAL	H1-H2	KG -3
B118	Ağır-Heavy	400kN	D400	690	600	240	540-480	51-80	95

AC 21

AC 21

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C-D	E	H	CANAL	KG 3
B119	Oval	250kN	C250	300	500	280-480	370	110	290-490	27

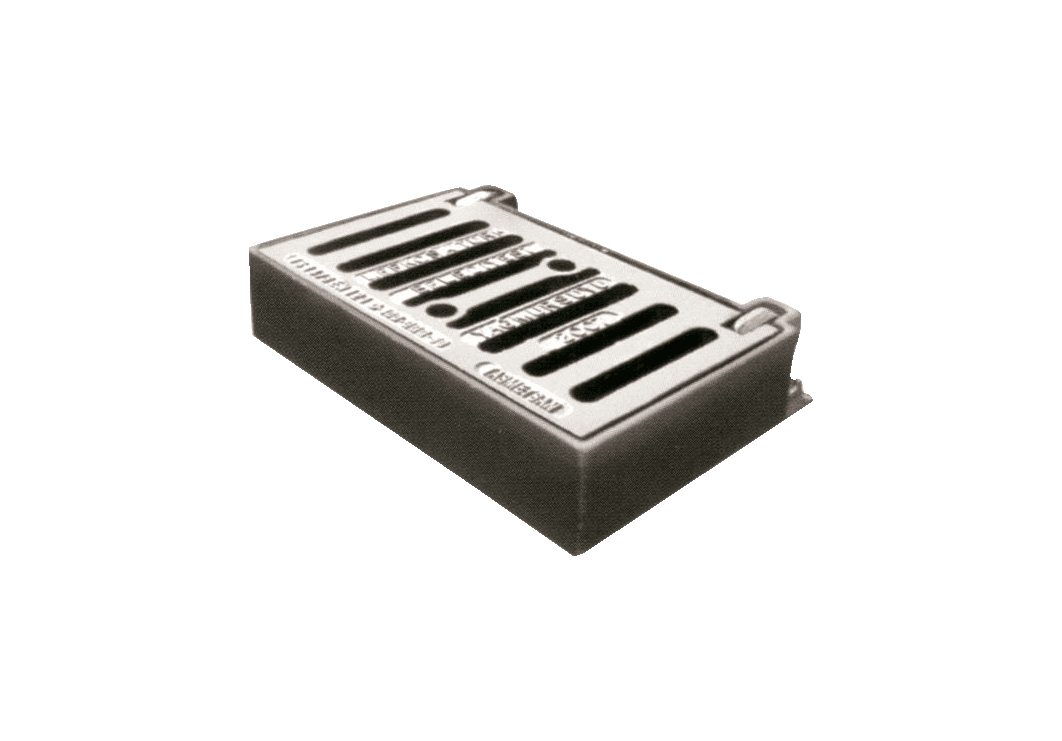

AC 22

AC 22

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B120	Düz-Flat	250kN	C250	300	500	280-480	370	110	290-490	29

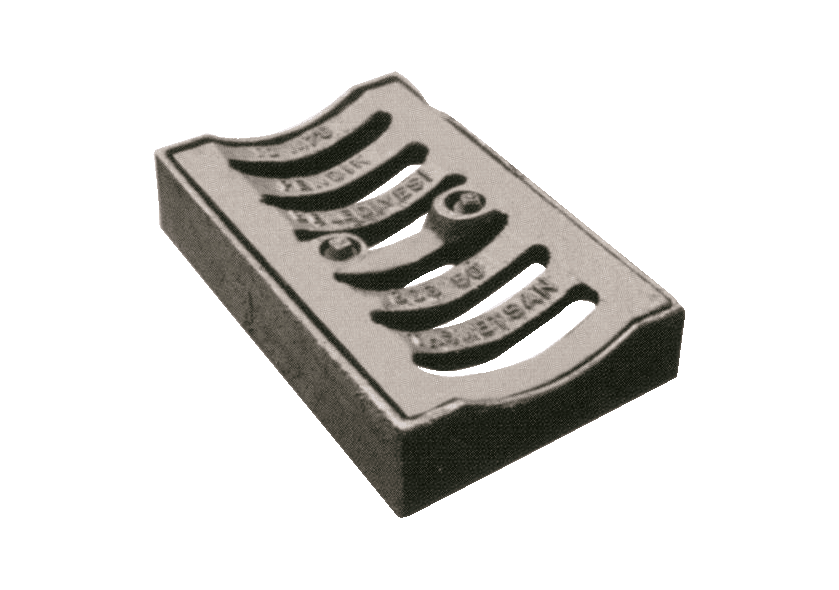

AC 23

AC 23

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C-D	H	CANAL	KG 3
B124	Oval	125kN	B125	290	400	305-410	95	250-400	18

AC 24

AC 24

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C-D	H	CANAL	KG 3
B125	Oval	125kN	B125	235	400	250-410	95	200-400	14

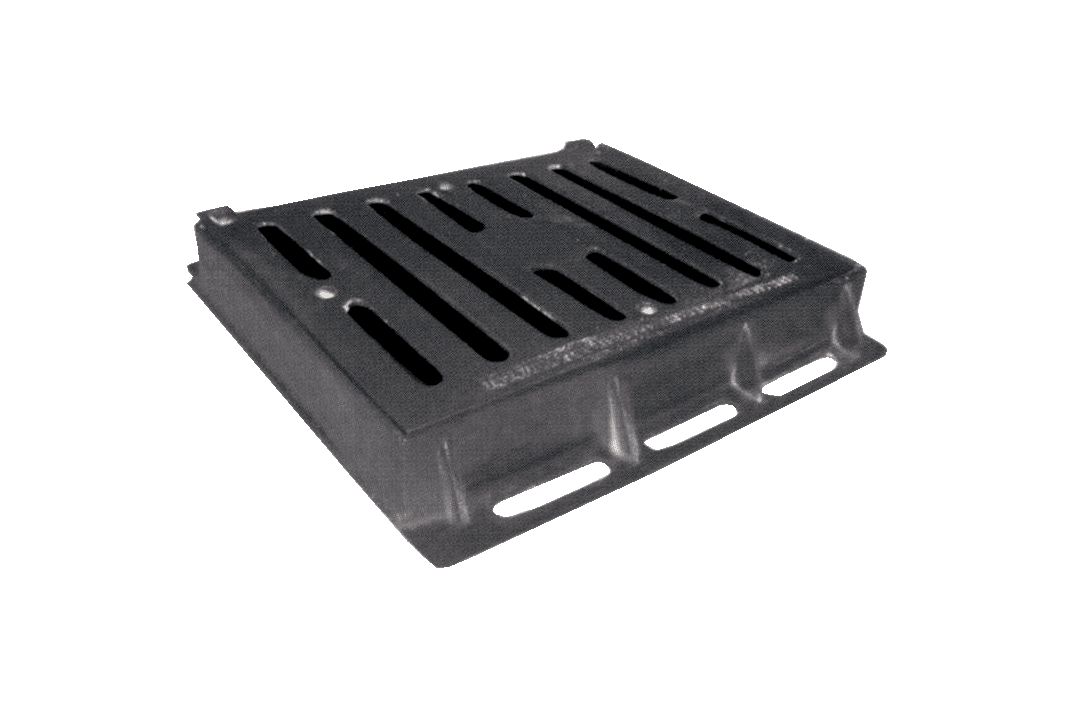

AC 25

AC 25

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B121	Ağır-Heavy	400kN	D400	800	750	790	585	720	67-116	115

AC 26

AC 26

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	H	CANAL	KG 3
B122	Orta-Medium	250kN	C250	650	550	90	205	265-535	55

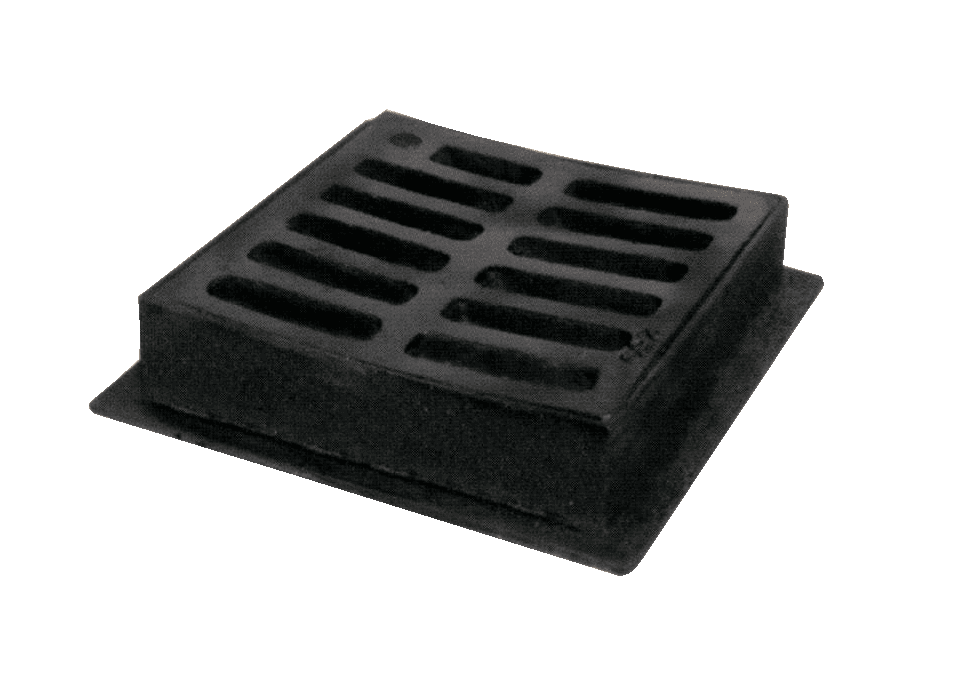

AC 27

AC 27

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B123	Orta-Medium	250kN	C250	430	430	498	498	418	40-109	38

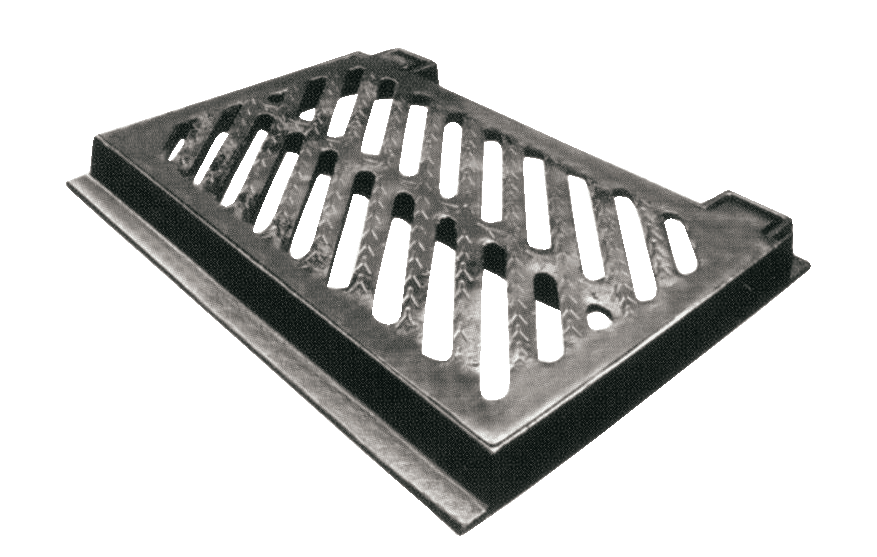

AC 28

AC 28

CODE	TYPE	STRENGHT	CLASS	DIMENSIONS
	A	B	C	D	CANAL	H1-H2	KG 3
B126	Ağır-Heavy	400kN	D400	890	535	935	680	492	48-95	125
